Quick Details

  • Type: solar frame, Snap-Open
  • Material: Aluminum
  • Size: Customized
  • Place of Origin: Jiangsu, China (Mainland)
  • Brand Name: Joyda
  • Model Number: Aluminum Frame
  • Shape: Rectangle
  • Usage: Aluminum Solar Panel
  • Anti-wind Ability: Strong
  • Package: Carton
  • Grade: 6000 Series
  • Certificates: ISO 9001
  • Thickness: Custom available

Packaging & Delivery

Packaging Details Carton packing with foam/wooden case
Delivery Time Shipped in 20 days after payment

Solar Panel Aluminium Frame

Product Description



Our aluminum solar panel frame is good in ability to adapt to changes in the environment and weather. Our aluminum solar panel frame comes in various shapes and sizes.It can be applied in different fields,such as solar street lighting system projects,commercial solar systems,science projects,electrical applications and so on.



Features:

Weather Pressure Resistance

Excellent Adaptability

Easy Installation

Corrosion-resistance

Impact Resistance

High Accuracy

Long Lifespan

High Durability

Water Resistance



specification

Material

6061/6063

Temper

T3- T8

Color

Black,Silver, Natural color or Custom

Thickness

≥ 0.8mm

Length

Regular 1~6m

Hardness

≥8 HW

Applicable temperature

-50°~100°

Wind load

60m/s

Snow load

1.4KN/M2

Surface treatment

Mill finish. Anodizing. Powder Coating. Wood grain .Electrophoresis.Polished. Sand blasting.

Machining

Cutting, Punching, Drilling, Bending, Weld, Mill, CNC, Etc.

Use

 Aluminum solar panel frame.Solar street lighting system projects,Commercial solar systems,Science projects,Electrical applications .

2D&3D Design

1.4Designers in design and development department
2.Auto CAD, 3D, AI, SLD, PRT. IGS, PDF, JPEG etc.

Engineering& tooling

1.8 Engineers in Mold Shop.
2. Use high tonnage extruder, Wire EDM, CNC, Drilling machines etc.

Quality control

1.Inspection at Site.
2.Inspection Before Shipping.
3.Packed according to customer request.

Packing details

1. Pearl cotton foam for each profile.
2. Wrap with shrink film exterior.
3. Packed according to customer request.

Product Show

Applications:

Roof Solar Panel Frame

PV Solar System Solar Panel Frame

New Energy System Solar Panel Frame

Commercial Solar Systems Solar Panel Frame                                                                                             Sizes: Customized

 Roof Solar Panel Frame







 PV Solar System Solar Panel Frame





New Energy System Solar Panel Frame







 Commercial Solar Systems Solar Panel Frame



                         1             2             3             4              5             6              7             8

         1.Anodized                2.Drawing               3.Powder coating                  4.Polishing

         5.Sand blasting         6.Laser                   7.Electrophoresis                   8.Oil painting

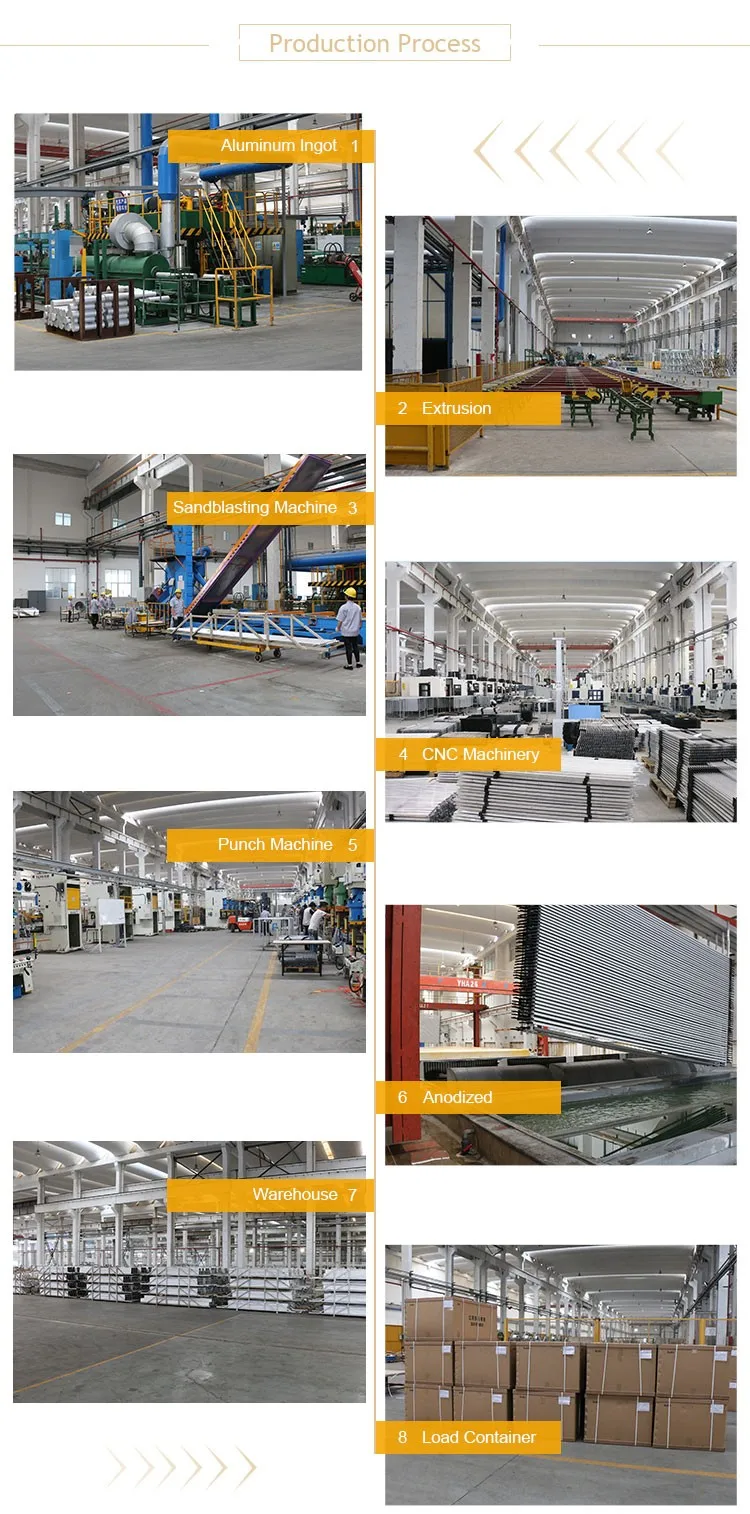

Processing methods including: aluminum extrusion, precise cutting, punching, CNC machining, polishing, brushing, anodizing color.

Our advantages:

We have the best engineering teams that are from different engineering disciplines. Theteam members are all young men that are full of passion and experience in mechanical and mechatronic design, product development. Their professional engineering knowledgeenables them to provide the best technical suports, to fulfill every need of the customer. Please do not hesitate to contact us if you have any enquiry, we are providing the best service and most competitive price.

Packaging & Shipping



Packing
1pc/poly bag and a 4mm single wall corrugated box. 10 or 5pcs/ 6 mm double wall corrugated master box.



Application:

1.Suitable for any sales promotion

2.It has the variety use for promotion in supermarket, special stores, bank, school and so on.

3.adcolumn, billboard, sign stand etc. Maybe it has a lot of different name, but it's only usage is been pasting some notification and information

4.Display large posters and prints with this Snap A Frame Poster Stand

5.These stands are perfect for the lobby, trade show, convention, office, business, and so on.

Our Services



Supplying you with solutions

Phone support: speak to a friendly voice you trust to get the job done

Industry leading practises: take the stress out of material control

On the case: we make sure every order is chased

In the know: one step ahead, recording the progress of your order

Comprehensive technology: we use the latest technology to stay ahead

Mail us any time: fast and reliable responses to inbound email



As Customer Request

Design: according to customer's CAD or PDF drawing.

Please provide your 2D or 3D drawing with details as below:

1. Type of material                               2. Quantity of the product

3. Part application                               4. Drawings, samples or pictures with details



Company Information




JIANGYIN JOYDA ALUMIIUM CO.,LTD.



FAQ


Q1: What are the advantages of using the 6000 series of alloys in aluminum extrusions?

A: The 6000 series, which incorporates magnesium and silicon, provide good extrudability, strength, corrosion resistance, formability and machinability -- which explains why it’s also  JJT’s alloy of choice for all our aluminum extrusions.





Q2: If I wish to send an electronic drawing to you, what types of files can you accept?

A: We accept many file formats such as DXF, DWG and IGES.



Q3: Why do extrusion companies always ask me to sign off on a drawing before they can

order tooling if I’ve already provided a drawing?

A: Oftentimes, we find a few key dimensions that are missing from the original drawing that need to be clearly identified.

Other times, we have taken exception to a tolerance,dimension, alloy, note, surface condition, etc. It’s just our way of documenting exactly what we have agreed upon.



Q4: What is the difference between anodized and mill finished?

 A: Mill is the raw state of aluminum as extruded - no surface treatment. Anodized (also known as Satin Clear or Clear

Anodized) is an electrolytic process. This process increases corrosion resistance and weather resistance.



Q5: What About Anodizer Rack Marks?

A: Electrical contact must be made to each part to be anodized. The more electrical current required, the greater the electrical contact. The size of the contact therefore depends on the anodizing process and the size of the part being anodized.
